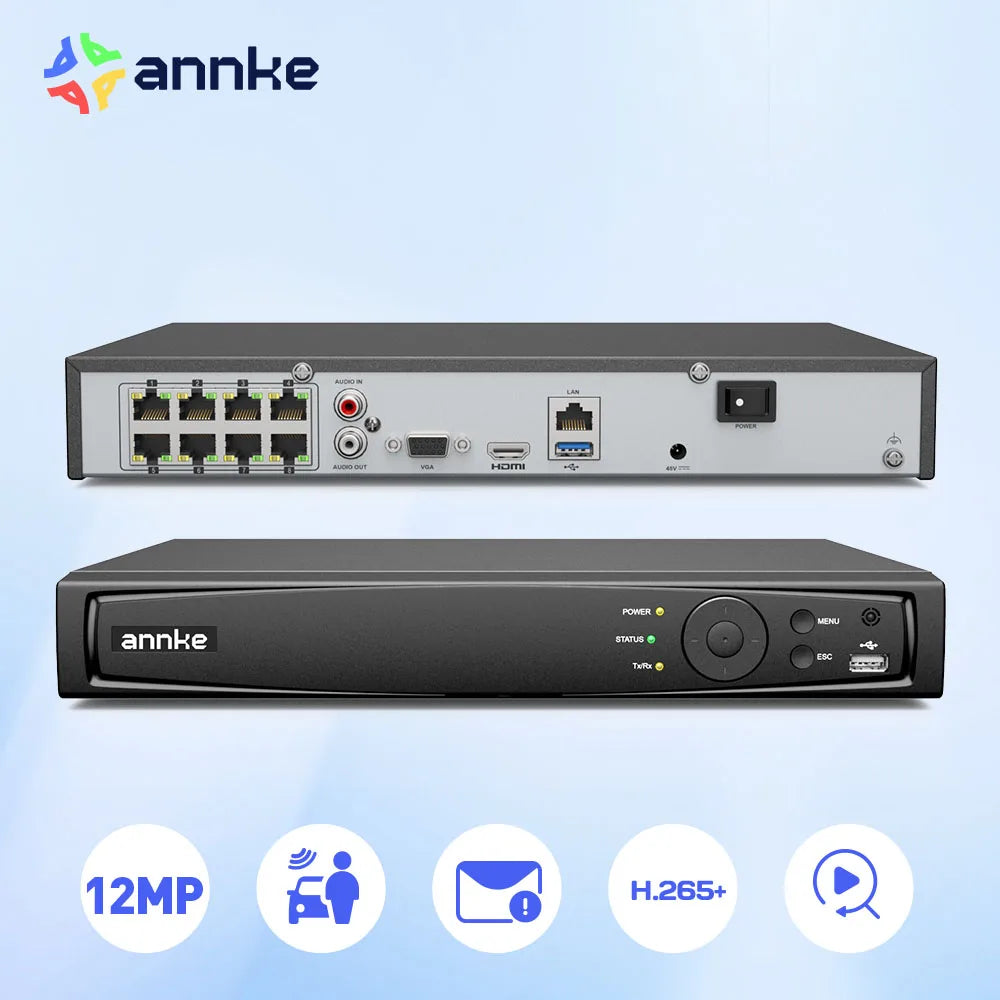

Annke 8Ch Nvr 12Mp Poe Video Recorder 4K H265 Surveillance
Annke 8Ch Nvr 12Mp Poe Video Recorder 4K H265 Surveillance
Couldn't load pickup availability
Secure your entire residential or commercial space with an eight-channel digital recorder engineered for consistent 4K footage quality.
- Simplified PoE Setup Connect up to eight IP cameras directly into the built-in network ports, so you avoid extra switches and messy cables.

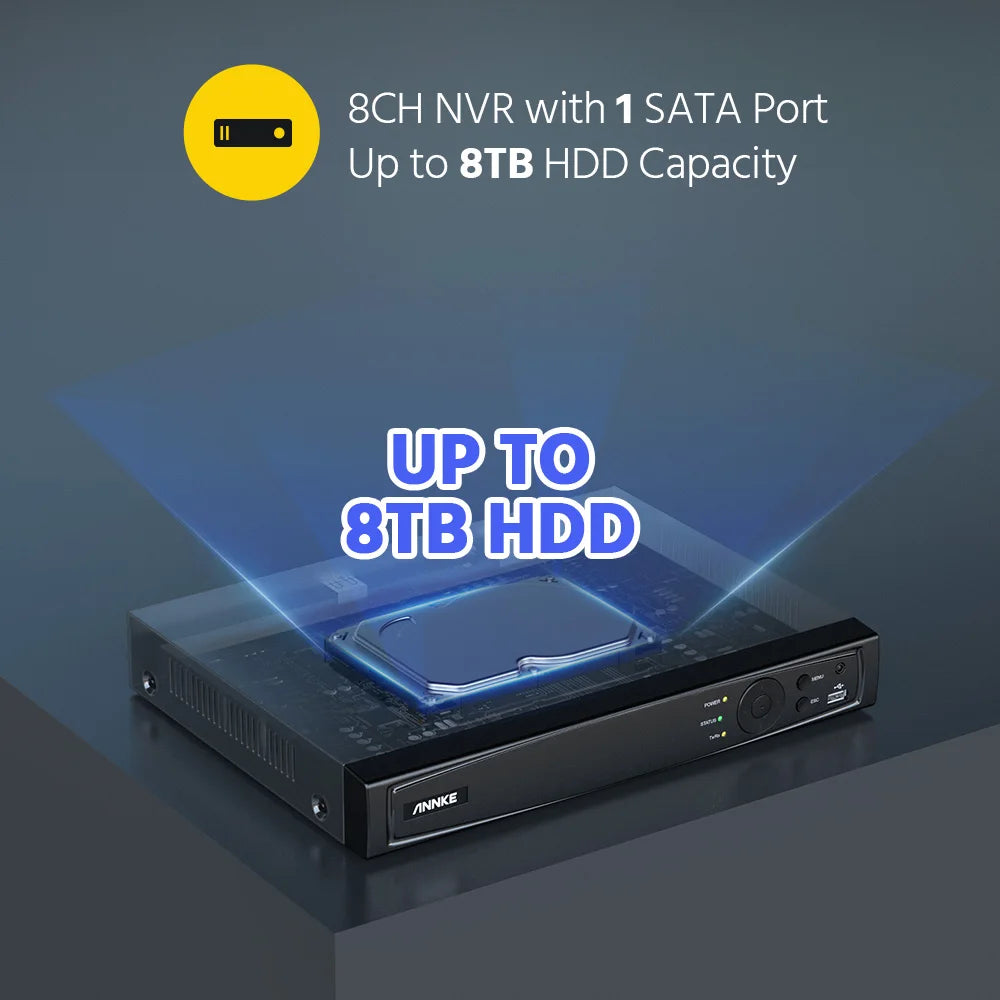

- Generous Offline Storage Slot in one internal SATA drive holding up to eight terabytes, giving you weeks of backup footage kept secure away from the cloud.
- Intelligent Event Sorting Lean on the onboard deep learning processor to filter out motion triggers, instanting alerts straight to your inbox whenever people or vehicles cross your defined zones.
- Anywhere Access Stream active scenes or scrub through archived clips effortlessly from your iPhone, iPad, or Android device.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
