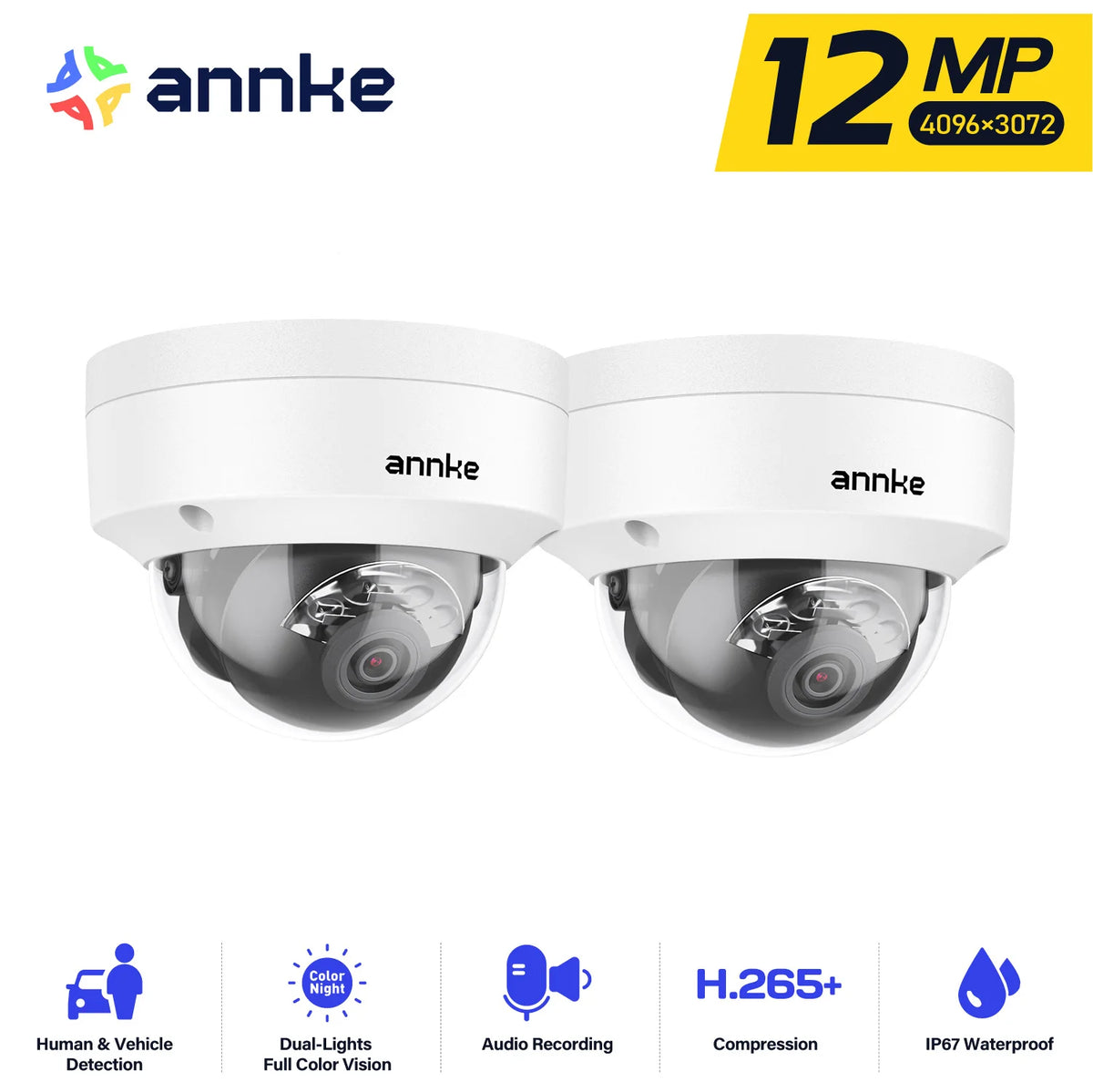

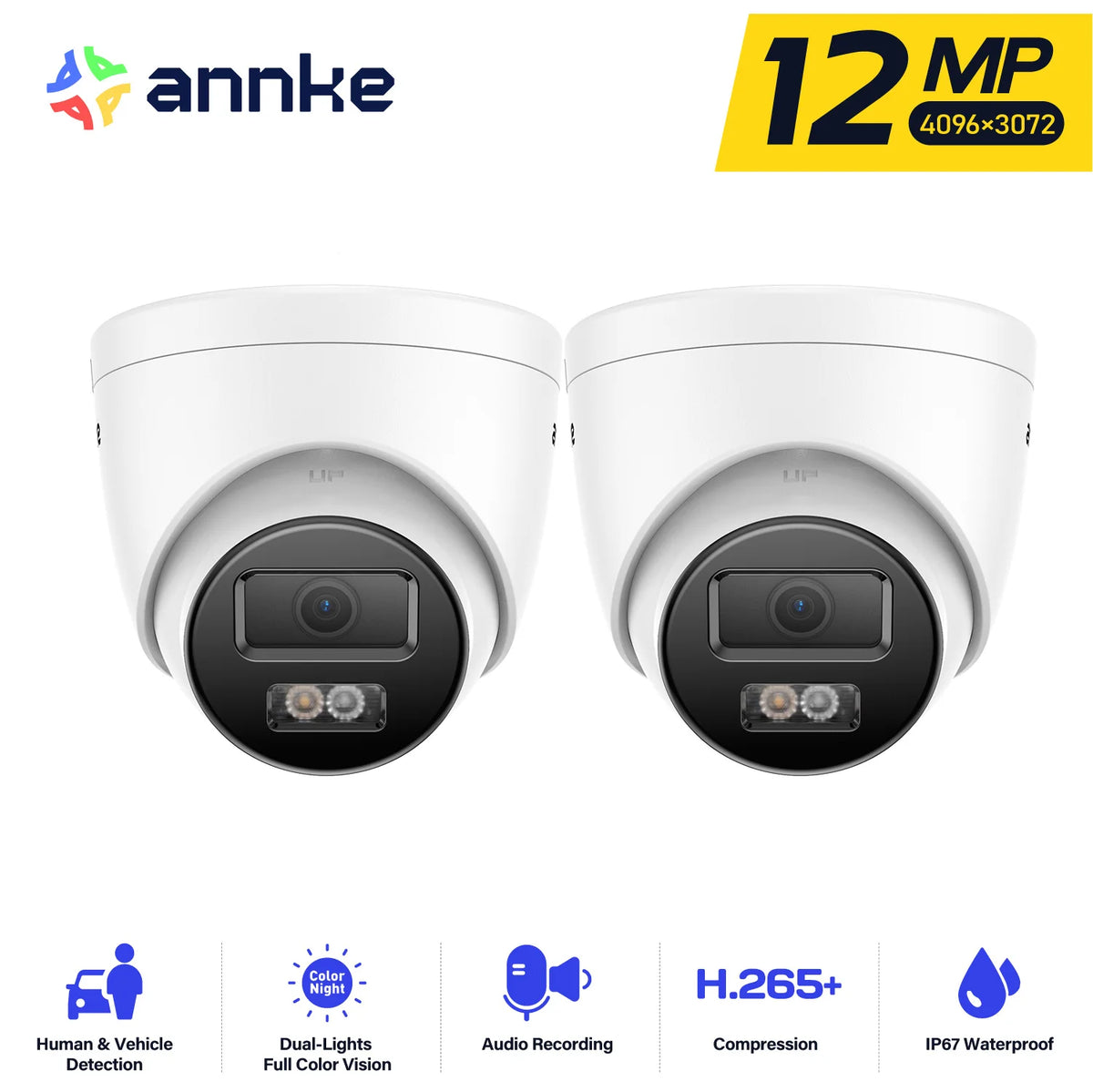

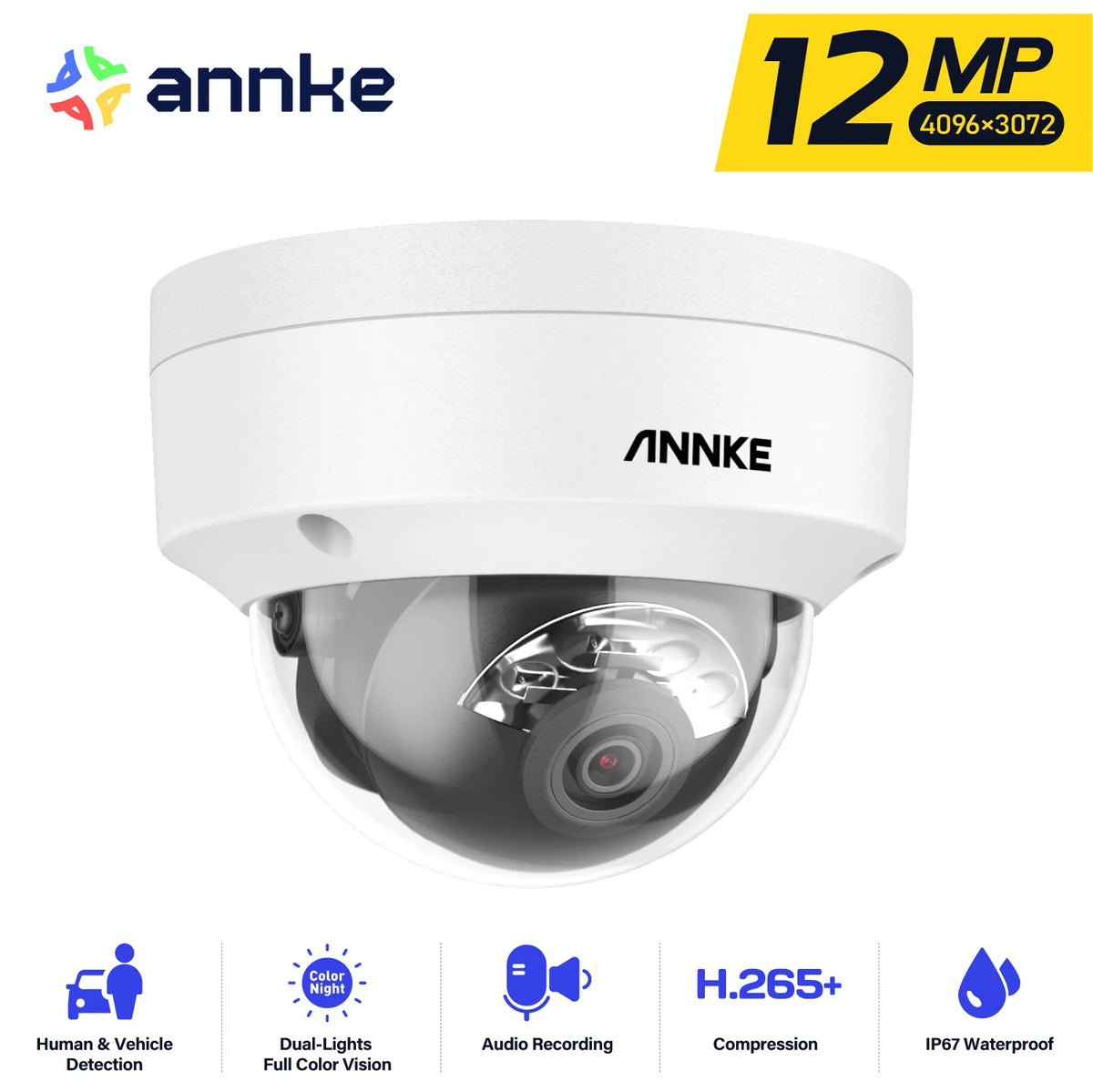

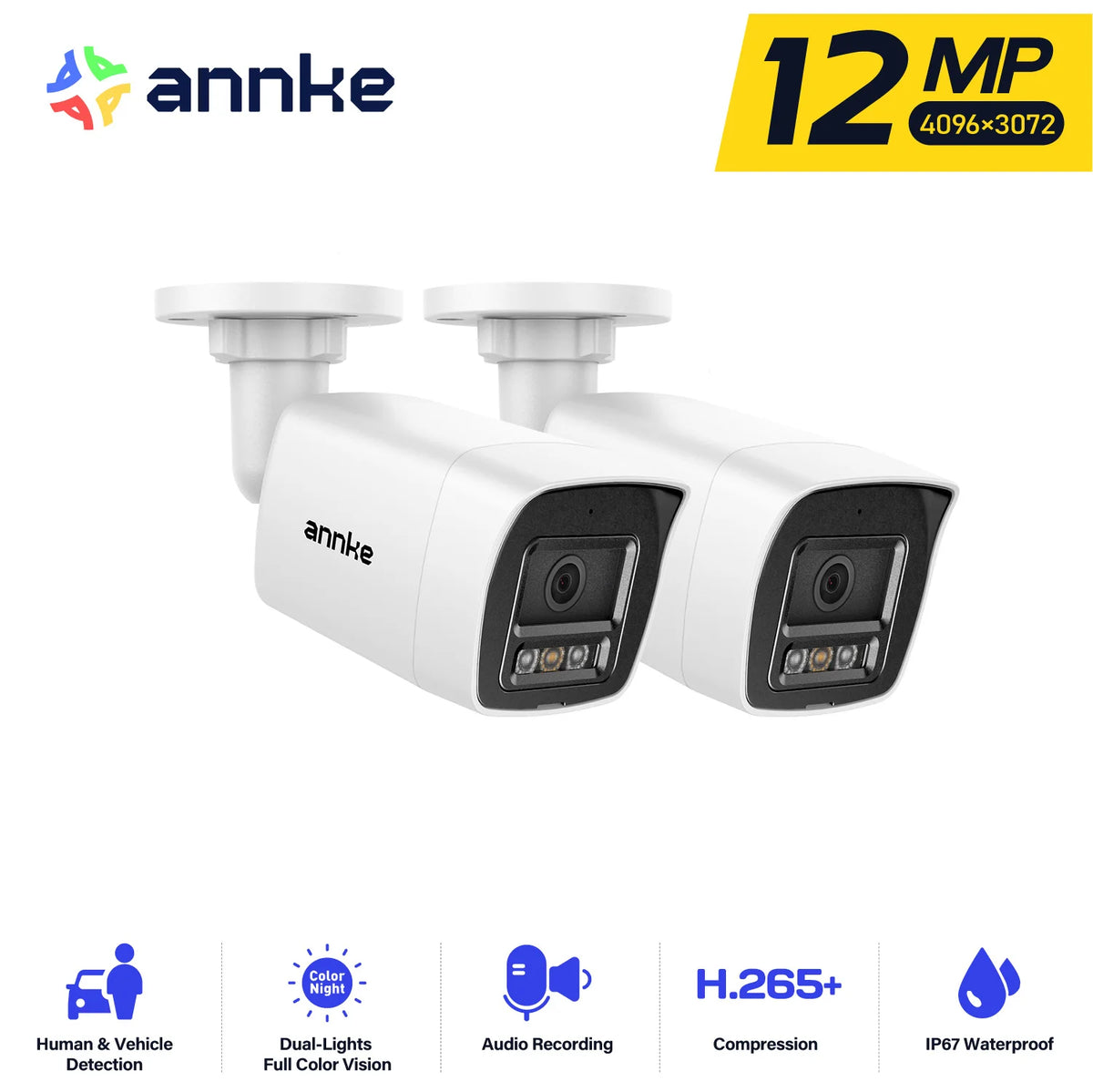

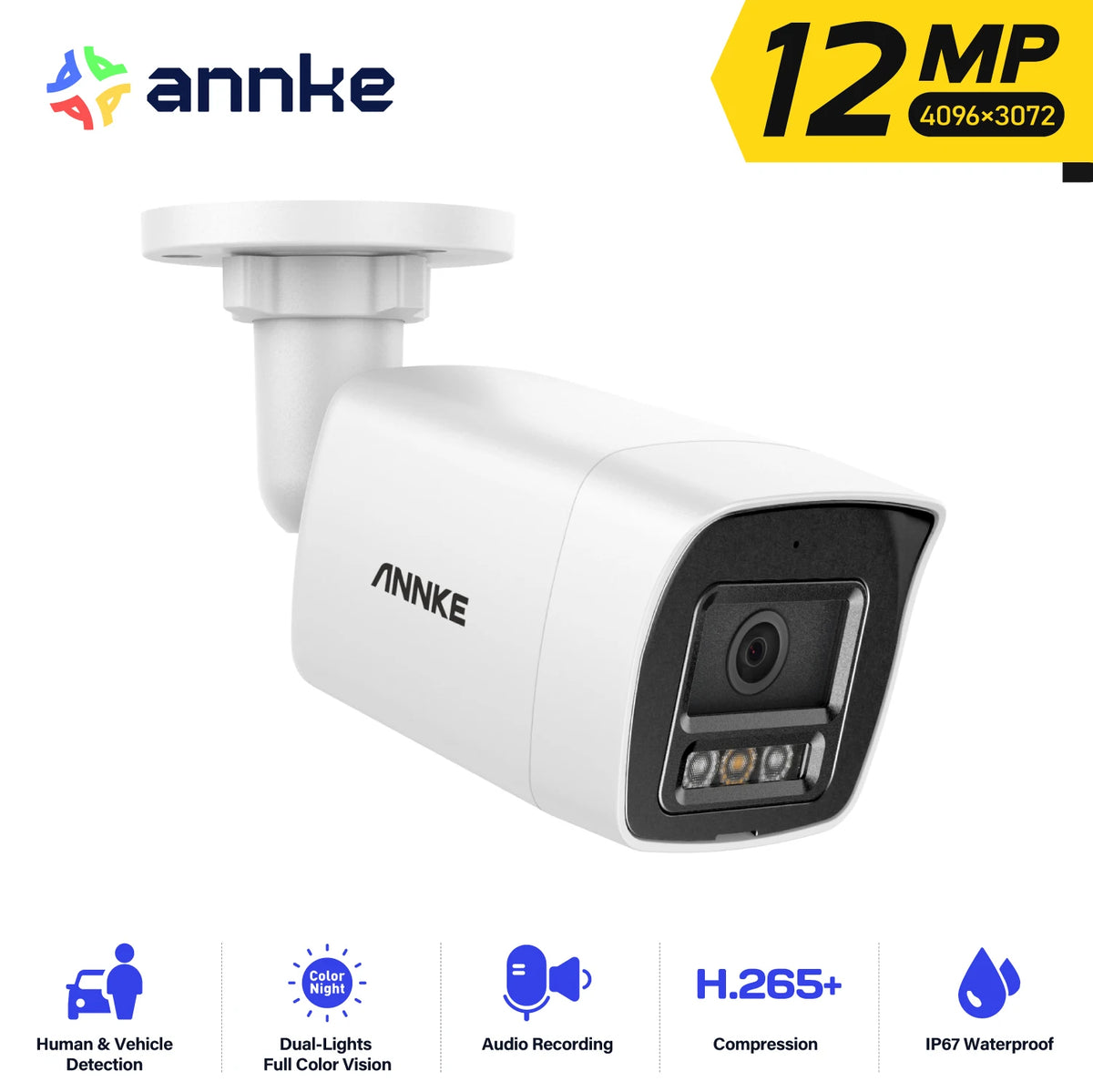

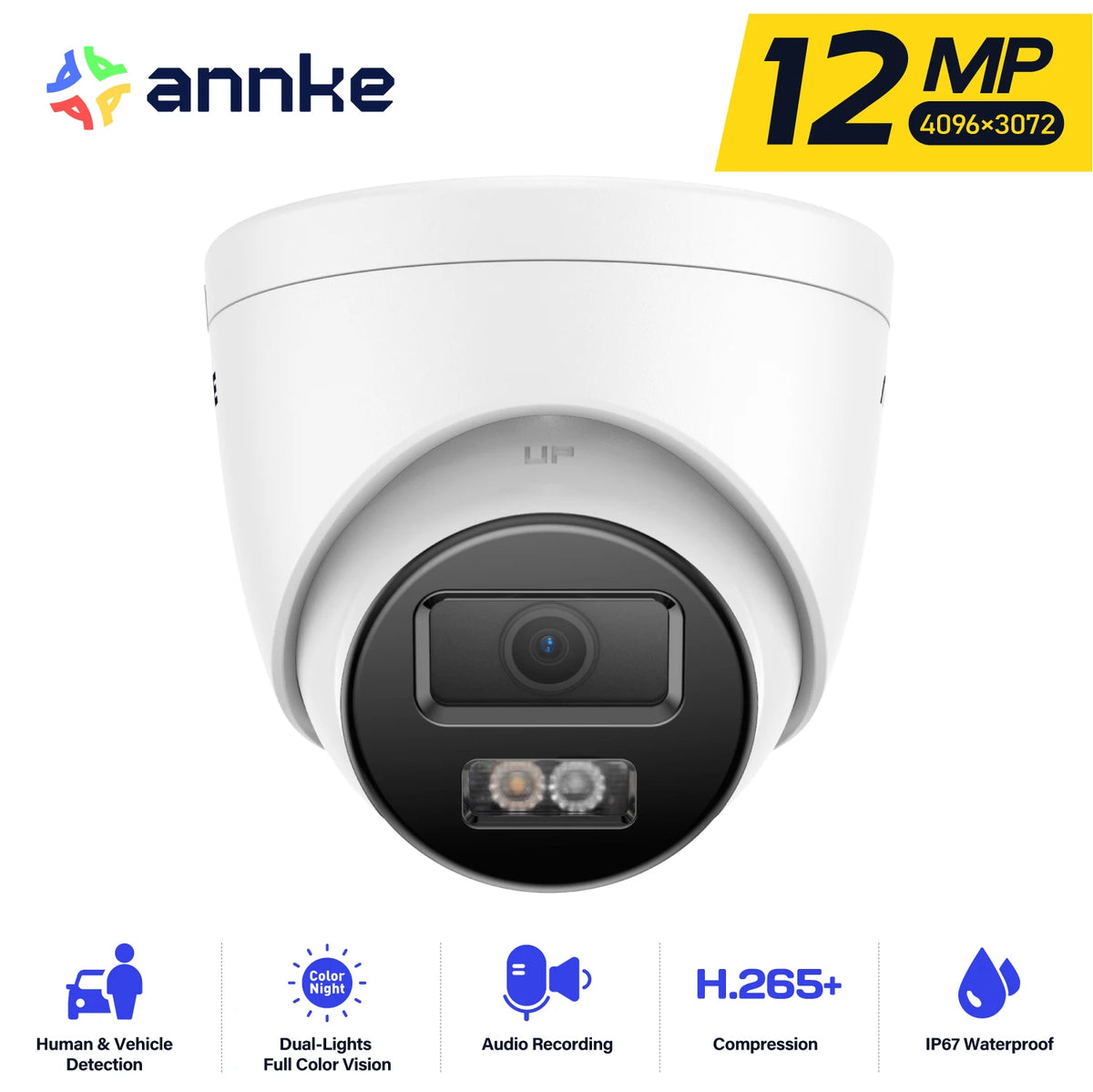

12MP IP Camera |
Camera |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Max resolution |
4096*3072(12MP) |
Main Stream |
50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)
60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
Substream |
50 Hz: 12.5 fps (1280*720, 640*480, 640*360)
60 Hz: 15 fps (1280*720, 640*480, 640*360) |
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
Video Bitrate |
32 Kbps - 16 Mbps |
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Audio Input |
Built-in Microphone, record with audio |
Lens |
2.8 mm |
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
Angle of View |
Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
Supplement Light Type |
Smart Dual-Light, IR, White Light |
Supplement Light Range |
Up to 30 m |
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
Image Enhancement |
BLC, HLC, 3D DNR |
Wide Dynamic Range |
120 dB WDR |
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
API |
Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) |
Region of Interest (ROI) |
1 fixed region for main stream |
Privacy Mask |
4 programmable polygon privacy masks |
General Function |
Rotate mode, mirror, password protection, remote access |
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
General |
Housing |
Metal & Plastic |
Color |
White & Black |
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
Hardware Reset |
Yes |
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
Indoor/Outdoor Use |
Indoor/Outdoor |
Interface Protection |
IP67 |
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
Weight |
0.6 lb./285 g |
